The Savannah
A Double-Layer Roof Tent from The Eco Collection
The Savannah Carpet Area 345ft²

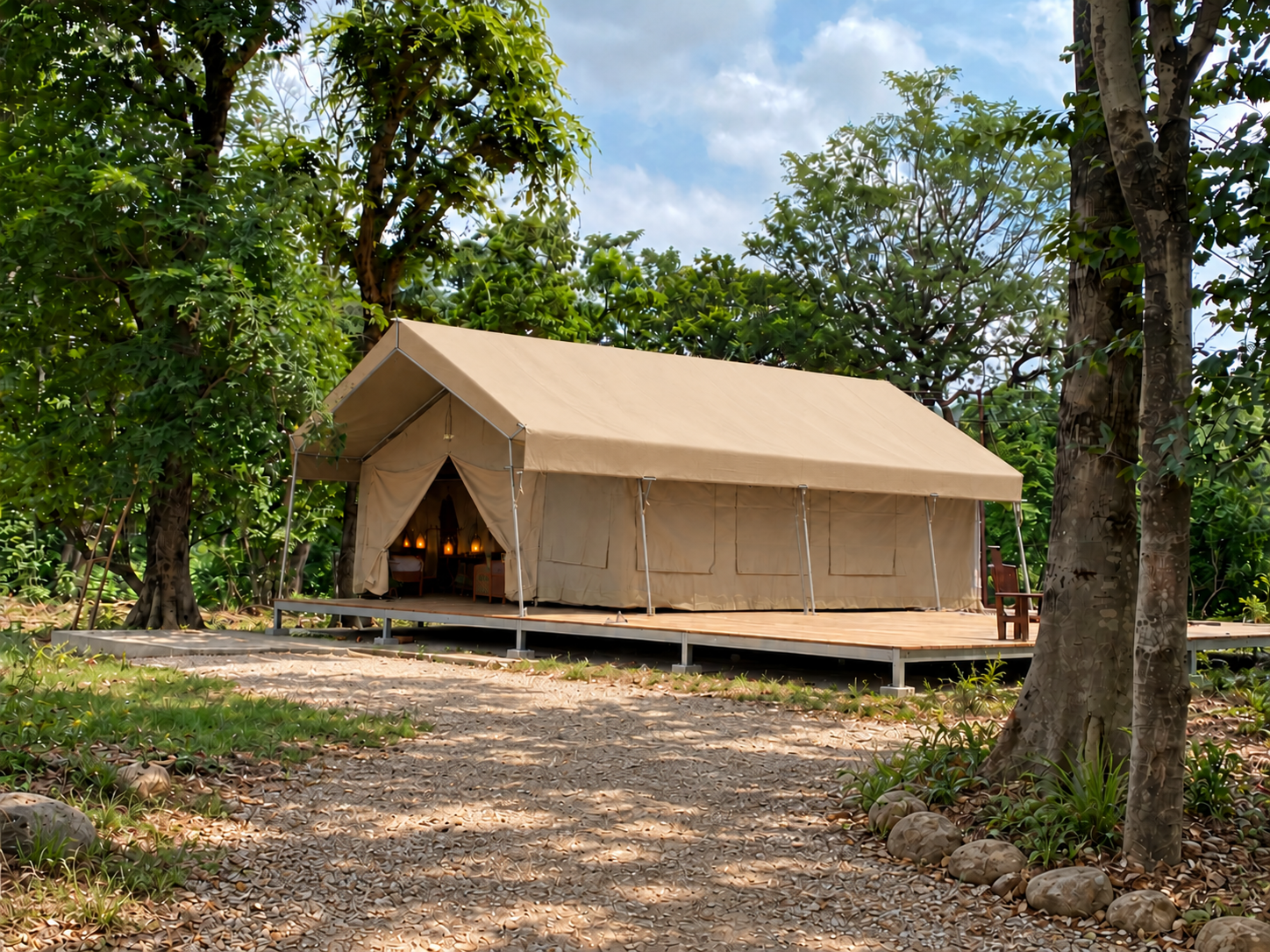

The Savannah — Practical Space for Relaxed Resort Stays
The Savannah offers a straightforward rectangular layout for resorts that want comfortable guest accommodation and efficient space planning. Its 15′ × 23′ carpet area totals 345 ft², with a 15′ × 17′ room and a separate 15′ × 6′ bathroom. The layout gives you a clear starting point for arranging beds, storage, and ensuite facilities.
The pitched canvas roof and roll-up openings suit relaxed woodland and outdoor resort settings. A two-layer roof, robust mild-steel frame, and zippered roll-up doors and windows provide practical access and ventilation. High-quality fabrics, together with customisable layouts, colours, and finishes, allow the tent to fit your site and budget.
Installation: Use a level, securely anchored plinth or raised platform. Plan drainage, bathroom services, electrical connections, and any heating or cooling with local contractors before installation.
Material Specifications
Rain Fly (Top Roof Layer) -
Manufactured using specially selected materials, the tensile membrane fabric comply with the highest standards with respect to UV, fungal and fire resistance, 580g/m², flame retardant to AS 1530 part 2, AS 1530 part 3, ASTM E 84 Class A, California T 19, 06.84 (UNI 9177): CL 1, NEPA 701 Test 2, NFP 92507: M2.
The acrylic coating on both sides is the perfect finishing touch, ensuring good resistance to dirt and easy cleaning, as well as durability.
Second layer (Bottom Roof Layer) -
510 g/m² ± 10 poly-cotton rip stop marquee canvas, water-resistance in accordance with BS 3408:1992, and anti-fungus in accordance with ISO 11721-1:2001, specially manufactured to resist the sometimes-inclement like the terrible weather.
Sidewalls -
510 g/m² ± 10 poly-cotton rip stop marquee canvas, water-resistance in accordance with BS 3408:1992, and anti-fungus in accordance with ISO 11721-1:2001, specially manufactured to resist the sometimes-inclement like the terrible weather.
Mosquito Netting -
The Mosquito Netting is a fine 120 g/m² ± 10 mesh with 50% shading. It is treated to be both anti-rot and UV resistant, ensuring ventilation while keeping insects out.
Frame (Structure) -
The framework consists of highly grade mild steel pipes with a combination of diameters of 38 mm and 50 mm, and a wall thickness of 1.2 mm. This provides excellent resistance to corrosion in a variety of outdoor environments.
Accessories -
Included Accessories are square tubing (for wall anchoring), tensioning straps and springs, standard zip-up screened windows with storm flaps, quality wooden slider guy ropes, zinc electro-galvanised steel pegs, curtain rods, and other necessary hardware for complete setup.
Wooden Decking (Optional) -
For a sturdy foundation without a concrete plinth, imported thermo wooden decking with a C/Z purlin base offers a durable and weather-resistant alternative. This setup ensures stability while maintaining a premium natural aesthetic.
All infrastructures (plumbing, electrical, heating, cooling etc.) have to be done locally working with local contractors on site. All the tents have an open layout- meaning you are able to designate any part of the tent as a bathroom or as per your requirements. The reason for this is to enable each and every tent to be completely customizable.
Dimensions
The provided dimensions are approximate and may vary slightly.
Please verify the exact measurements before making a final decision.
- Carpet Area: 15′ × 23′
- Semi Built-up Area: 18′ × 31′
- Built-up Area: 20′ × 33′
- Projection Area: 18′ × 31′
- Super Built-up Area: 24′ × 31′
- Sidewalls Height: 7′3″
- Inner Roof Height: 10′
- Frame Height: 11′4″
- Apex: 13′4″
- Tail Height: 6′10″
- Room Area: 15′ × 17′
- Bathroom Area: 15′ × 6′
Features
- Two-layer roof for a comfortable interior ceiling
- Robust mild-steel frame
- Zippered roll-up doors and windows
- High-quality fabrics and practical ventilation
- Customisable layout, size, colours, and finishes
