The Explorer
A Double-Layer Roof Tent from The Eco Collection
The Explorer Carpet Area 324ft²

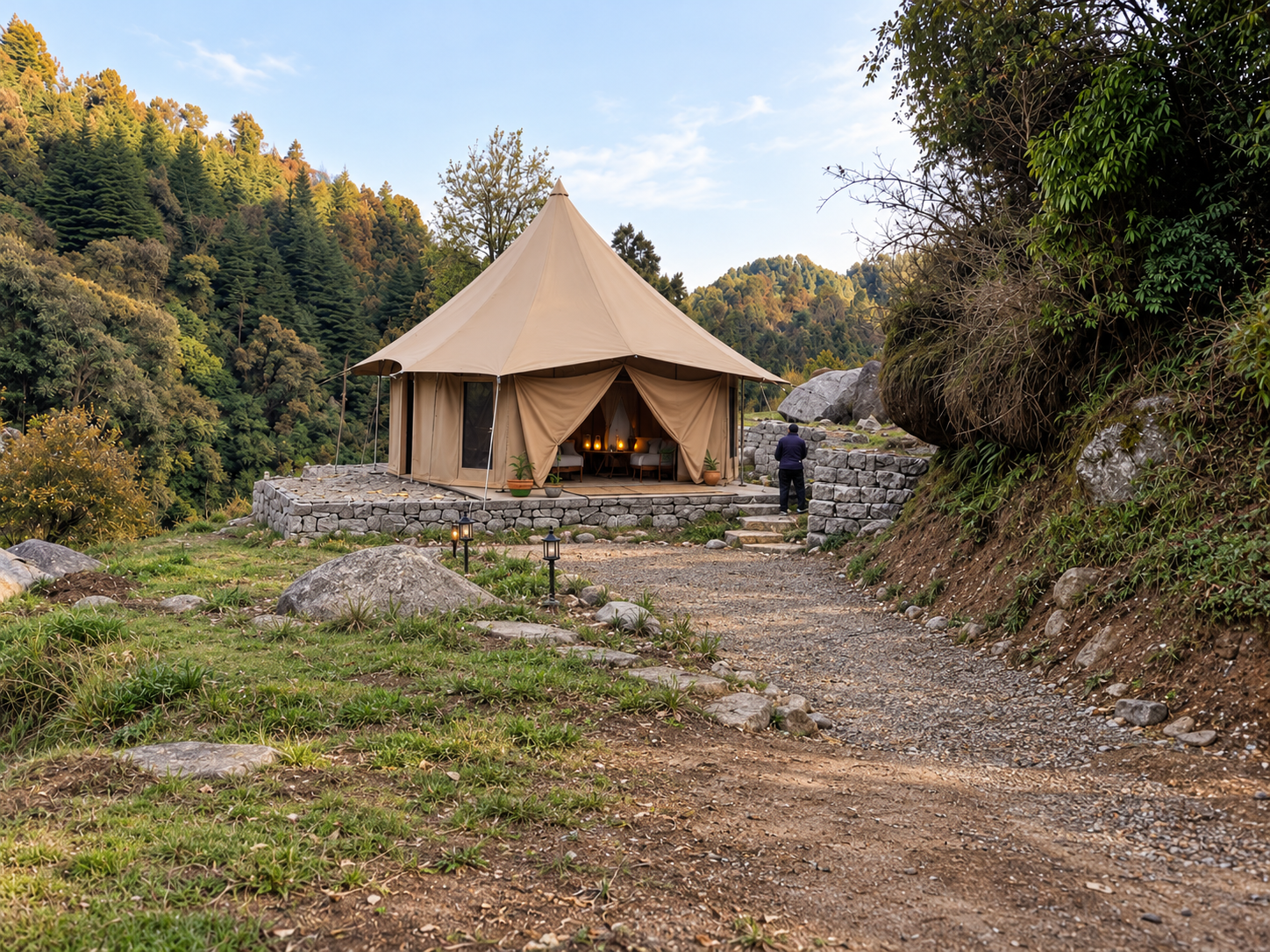

The Explorer — Compact Comfort for Outdoor Stays
The Explorer is a compact glamping tent for resorts that want to offer a comfortable stay with a manageable footprint. Its 18′ × 18′ carpet area provides 324 ft² of usable space, with room to plan a sleeping area, luggage storage, and seating. The supplied layout also includes an 8′ × 5′ bathroom area.
A tall, peaked roof gives the tent a distinctive profile. The two-layer roof, robust mild-steel frame, and zippered roll-up doors and windows make it a practical choice for budget-conscious glamping projects. High-quality materials and customisable layouts and finishes help you adapt the tent to your site and guest experience.
Installation: Install on a level, prepared plinth or raised platform with secure anchoring. Plan plumbing, electrical connections, and bathroom services with your local contractors.
Material Specifications
Rain Fly (Top Roof Layer) -
Manufactured using specially selected materials, the tensile membrane fabric comply with the highest standards with respect to UV, fungal and fire resistance, 580g/m², flame retardant to AS 1530 part 2, AS 1530 part 3, ASTM E 84 Class A, California T 19, 06.84 (UNI 9177): CL 1, NEPA 701 Test 2, NFP 92507: M2.
The acrylic coating on both sides is the perfect finishing touch, ensuring good resistance to dirt and easy cleaning, as well as durability.
Second layer (Bottom Roof Layer) -
510 g/m² ± 10 poly-cotton rip stop marquee canvas, water-resistance in accordance with BS 3408:1992, and anti-fungus in accordance with ISO 11721-1:2001, specially manufactured to resist the sometimes-inclement like the terrible weather.
Sidewalls -
510 g/m² ± 10 poly-cotton rip stop marquee canvas, water-resistance in accordance with BS 3408:1992, and anti-fungus in accordance with ISO 11721-1:2001, specially manufactured to resist the sometimes-inclement like the terrible weather.
Mosquito Netting -
The Mosquito Netting is a fine 120 g/m² ± 10 mesh with 50% shading. It is treated to be both anti-rot and UV resistant, ensuring ventilation while keeping insects out.
Frame (Structure) -
The framework consists of highly grade mild steel pipes with a combination of diameters of 38 mm and 50 mm, and a wall thickness of 1.2 mm. This provides excellent resistance to corrosion in a variety of outdoor environments.
Accessories -
Included Accessories are square tubing (for wall anchoring), tensioning straps and springs, standard zip-up screened windows with storm flaps, quality wooden slider guy ropes, zinc electro-galvanised steel pegs, curtain rods, and other necessary hardware for complete setup.
Wooden Decking (Optional) -
For a sturdy foundation without a concrete plinth, imported thermo wooden decking with a C/Z purlin base offers a durable and weather-resistant alternative. This setup ensures stability while maintaining a premium natural aesthetic.
All infrastructures (plumbing, electrical, heating, cooling etc.) have to be done locally working with local contractors on site. All the tents have an open layout- meaning you are able to designate any part of the tent as a bathroom or as per your requirements. The reason for this is to enable each and every tent to be completely customizable.
Dimensions
The provided dimensions are approximate and may vary slightly.
Please verify the exact measurements before making a final decision.
- Carpet Area: 18′ × 18′
- Semi Built-up Area: 19′ × 19′
- Built-up Area: 20′ × 20′
- Projection Area: 22′ × 22′
- Super Built-up Area: 24′ × 24′
- Sidewalls Height: 7′3″
- Inner Roof Height: 12′
- Frame Height: 8′3″
- Apex: 15′
- Tail Height: 6′10″
- Room Area: 18′ × 18′
- Bathroom Area: 8′ × 5′
Features
- Two-layer roof for a comfortable interior ceiling
- Robust mild-steel frame
- Zippered roll-up doors and windows
- High-quality fabrics and practical ventilation
- Customisable layout, size, colours, and finishes
